Lab 6 - Creating a Applications using AS3 Declarative Interface & BIG-IQΒΆ

In this lab, we will create a simple HTTP application using AS3 via BIG-IQ.

Unless instructed, throughout this section we will be working in the BIG-IQ Collection in Postman.

If the error Cannot find any ADC root nodes for the target devices occurs, follow directions here: https://clouddocs.f5.com/products/extensions/f5-appsvcs-extension/latest/userguide/troubleshooting.html

Exercise 1 - Ensure BIG-IP devices are in sync

Before BIG-IQ can be used to perform application creation via AS3, all BIG-IP devices in a config sync group must be in sync. In order to show how AS3 can do the configuration creation on both devices, the BIG-IP devices in the lab are configured with manual sync. Due to that, you need to ensure the two BIG-IP devices are in sync before starting this section of the lab. of this lab.

  1. Open the Authenticate to BIG-IP request.
  2. Send the request, and ensure you receive a 200 OK response.
  3. Open the BIG-IP: Get sync status request.
  4. Send the request, and ensure you receive a 200 OK response.
  5. Look at the data returned in the request. If it has a status of red reported, then you will need to complete the other steps in this exercise. If the status is reported as green, then you can proceed to Exercise 2.

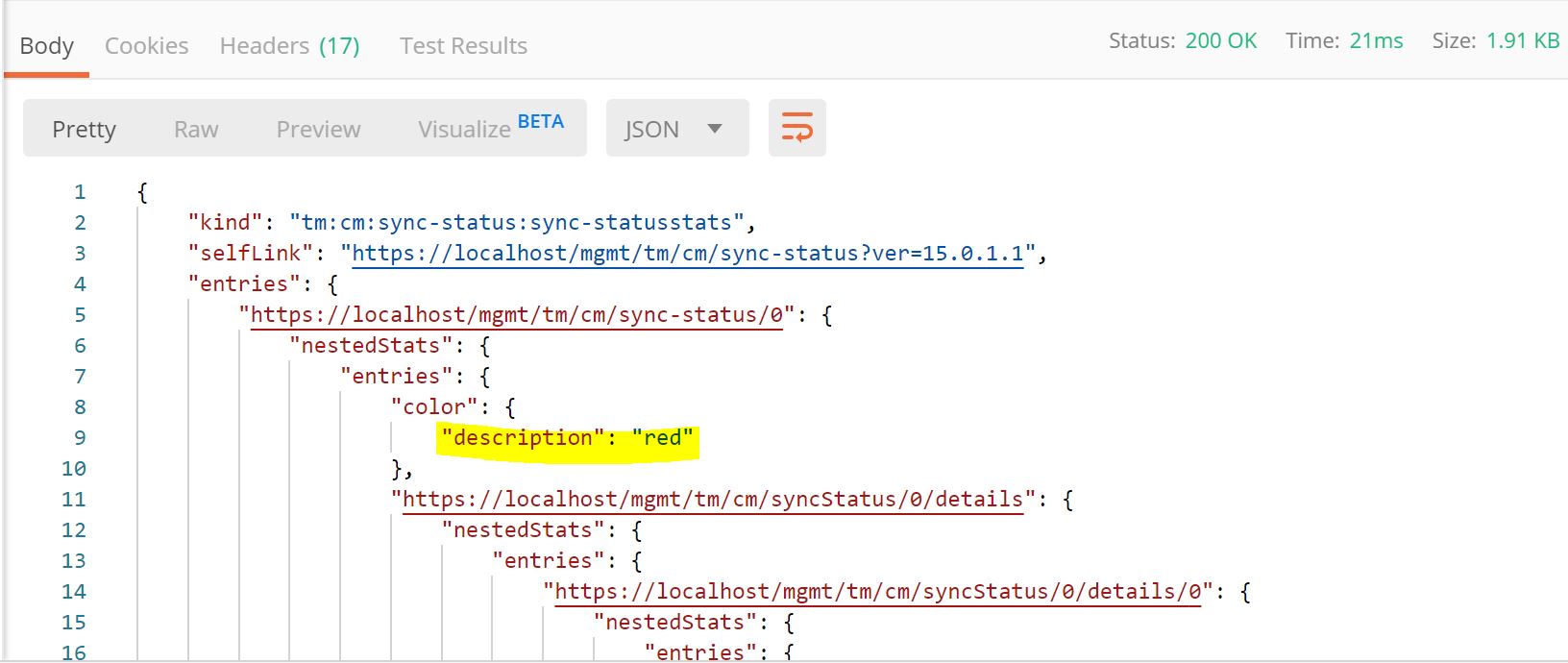

../../_images/bigip-cfgsync-status-red-highlighted.JPG
  1. Open the BIG-IP: sync failoverGroup request, and click Send.
  2. Ensure you receive a 200 OK response.
  3. Open the BIG-IP: sync datasync-global-dg request, and click Send.
  4. Ensure you receive a 200 OK response.
  5. Open the BIG-IP: Get sync status request, and click Send.
  6. Ensure you receive a 200 OK response.
  7. Look at the data returned in the request. If it has a status of green reported.

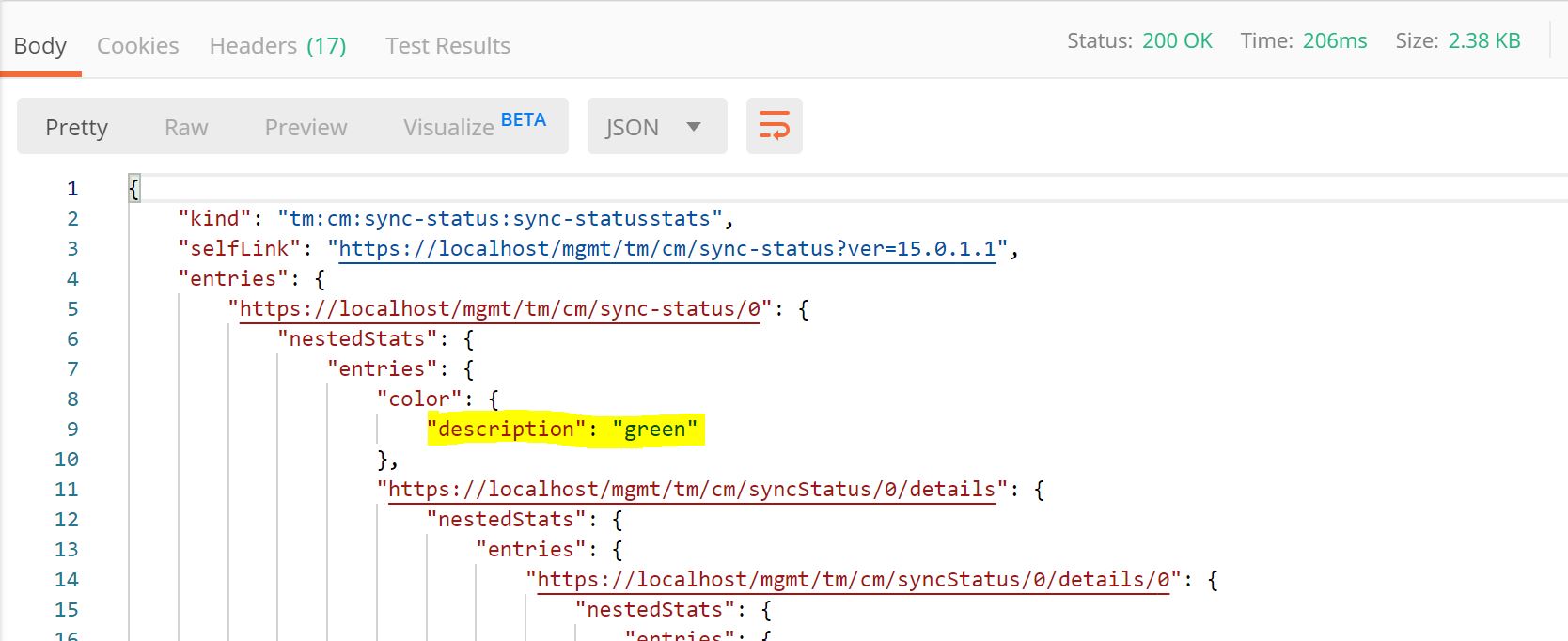

../../_images/bigip-cfgsync-status-green-highlighted.JPG

Exercise 2 - Authenticate to the BIG-IQ

  1. Open the Authenticate to BIG-IQ request. Note that tokens need to be refreshed after 5 minutes. 401 Errors will occur if the token is bad or old. Resending this request will refresh the token.

  2. Click on the Body section of the POST Request. The body will look like the following

    1
2
3
4
5
    {
    "username": "admin",
    "password": "admin",
    "loginProviderName": "tmos"
}

  3. Click the blue Send button. Ensure that you receive a 200 OK response.

Exercise 3 - Deploy and Delete an App without an App Template on BIG-IQ

  1. Open the Deploy App w/o Template request.

  2. Click on the Body section of the POST Request. The body will look like the following

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
    {
    "class": "AS3",
    "declaration": {
        "class": "ADC",
        "schemaVersion": "3.7.0",
        "id": "thisisanid",
        "label": "App1",
        "remark": "HTTP with custom persistence",
        "target": {
            "hostname": "bigip01.as3lab.com"
        },
        "DemoService": {
            "class": "Tenant",
            "A1": {
                "class": "Application",
                "template": "http",
                "serviceMain": {
                    "class": "Service_HTTP",
                    "virtualAddresses": [
                        "10.1.20.50"
                    ],
                    "pool": "web_pool"
                },
                "web_pool": {
                    "class": "Pool",
                    "monitors": [
                        "http"
                    ],
                    "members": [{
                    "servicePort": 8080,
                    "serverAddresses": [
                        "10.1.10.30"
                    ]
                    }]
                }
            }
        }
    }
}

  3. Looking further into this request, the URI is sent to the IP address of BIG-IQ instead of the BIG-IP address per past requests. The target in the declaration shows that BIG-IQ will create the configuration on bigip01.as3lab.com. The rest of the declaration is just like what you would send directly to a BIG-IP device.

  4. Click the blue Send button. Ensure that you receive a 200 OK response.

  5. This application is now in the Demo Service partition on the BIG-IP (10.1.1.4).

  6. Login to the BIG-IP to confirm changes. Open Chrome and navigate to https://10.1.1.4 (or you can click on the BIG-IP01 bookmark in Chrome).

  7. Login with the following credentials: username = admin , password = admin.

  8. Login to the BIG-IQ to confirm changes. Open Chrome and navigate to https://10.1.1.7 (or you can click on the BIG-IQ bookmark in Chrome).

  9. On BIG-IQ, navigate to Applications -> Applications screen to view the deployed application.

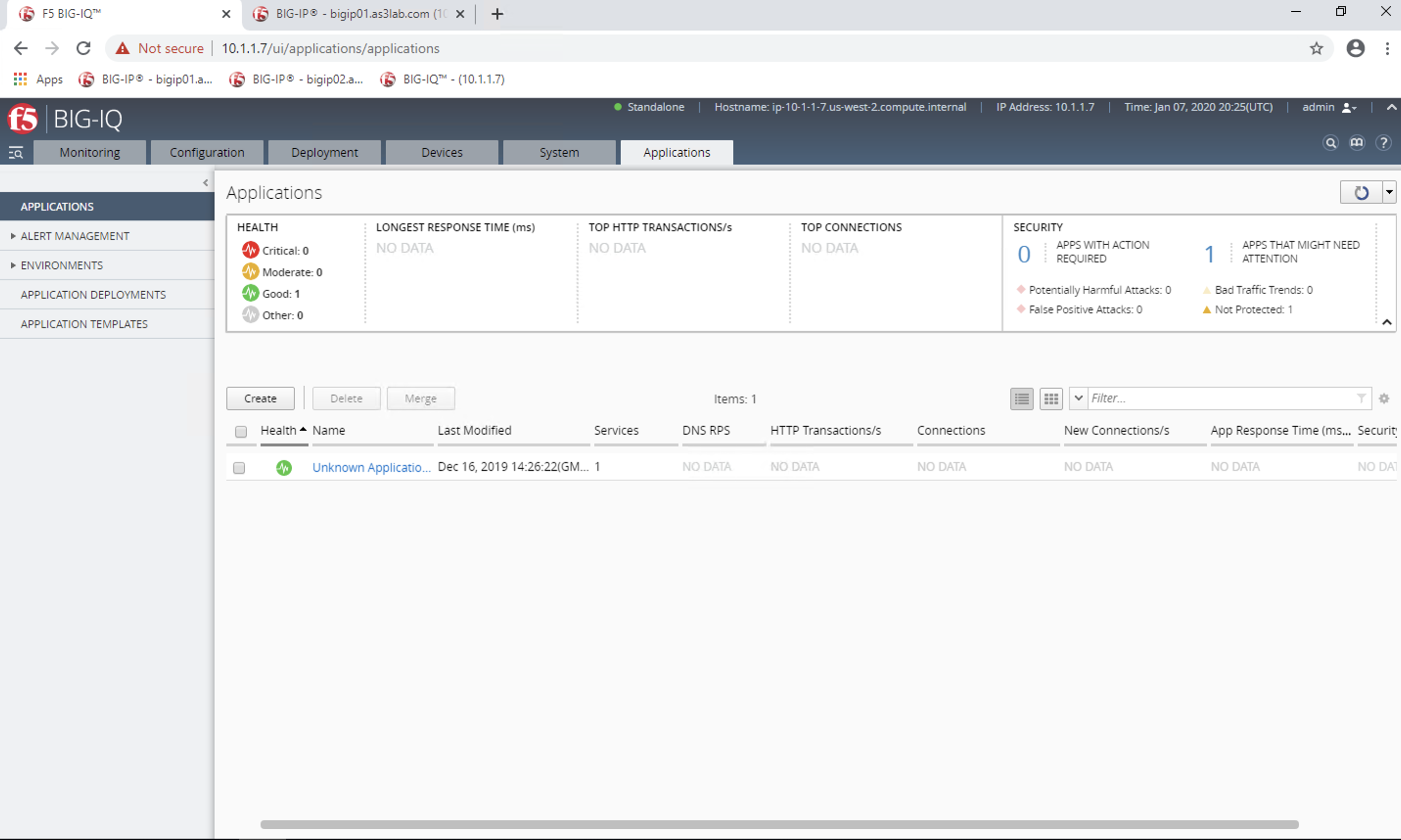

    ../../_images/bigiq_1.jpg

  10. Now we will move our applciations from Unknown Applications to another tile named Known Applications.

  11. Send the Get Application Reference request to set the variable _bigiq_app_ref. Look at the Tests window for the declaration to see the variable being set, whcih will be used in the following step.

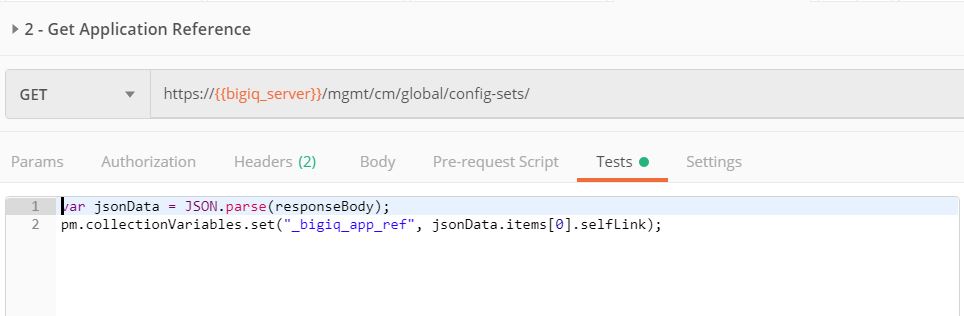

    ../../_images/big_variable.JPG

  12. Open the Move out of Unknown App request.

  13. Look at the Body` of the request, and you will see that we are moving the application to ``Known Applications. You could name this to any string.

  14. Click the blue Send button. Ensure that you receive a 200 OK response.

  15. Navigate back to the BIG-IQ Applications tab, and you will see that our app is now under the Known Applications tile.

  16. Now that we have had some fun, lets delete the app. Open the Delete App w/o Template request.

  17. Click the blue Send button. Ensure that you receive a 200 OK response.

  18. This application is now deleted from BIG-IQ and BIG-IP (10.1.1.4).

Exercise 4 - Deploy, Change and Delete Apps via App Templates on BIG-IQ

  1. Open the Upload App Template to BIG-IQ request. Note that this this request was taken from https://github.com/f5devcentral/f5-big-iq.

  2. Click on the Body section of the POST Request. The body will look like the following

      1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
    {
    "description": "For load balancing an HTTP application on port 80.",
    "name": "AS3-F5-HTTP-lb-template-big-iq-default-v1",
    "published": true,
    "isUICompatible": true,
    "tenant": {
        "name": "",
        "override": false,
        "editable": true
    },
    "schemaOverlay": {
        "type": "object",
        "properties": {
            "class": {
                "type": "string",
                "const": "Application"
            },
            "template": {},
            "schemaOverlay": {},
            "label": {},
            "remark": {}
        },
        "additionalProperties": {
            "allOf": [
                {
                    "anyOf": [
                        {
                            "properties": {
                                "class": {
                                    "const": "Analytics_Profile"
                                }
                            }
                        },
                        {
                            "properties": {
                                "class": {
                                    "const": "HTTP_Profile"
                                }
                            }
                        },
                        {
                            "properties": {
                                "class": {
                                    "const": "Pool"
                                }
                            }
                        },
                        {
                            "properties": {
                                "class": {
                                    "const": "Service_HTTP"
                                }
                            }
                        }
                    ]
                },
                {
                    "if": {
                        "properties": {
                            "class": {
                                "const": "Analytics_Profile"
                            }
                        }
                    },
                    "then": {
                        "$ref": "#/definitions/Analytics_Profile"
                    }
                },
                {
                    "if": {
                        "properties": {
                            "class": {
                                "const": "HTTP_Profile"
                            }
                        }
                    },
                    "then": {
                        "$ref": "#/definitions/HTTP_Profile"
                    }
                },
                {
                    "if": {
                        "properties": {
                            "class": {
                                "const": "Pool"
                            }
                        }
                    },
                    "then": {
                        "$ref": "#/definitions/Pool"
                    }
                },
                {
                    "if": {
                        "properties": {
                            "class": {
                                "const": "Service_HTTP"
                            }
                        }
                    },
                    "then": {
                        "$ref": "#/definitions/Service_HTTP"
                    }
                }
            ]
        },
        "required": [
            "class"
        ],
        "definitions": {
            "Analytics_Profile": {
                "properties": {
                    "class": {},
                    "collectUserAgent": {
                        "type": "boolean"
                    },
                    "collectClientSideStatistics": {
                        "type": "boolean",
                        "default": true
                    },
                    "collectGeo": {
                        "type": "boolean"
                    },
                    "collectUrl": {
                        "type": "boolean"
                    },
                    "collectPageLoadTime": {
                        "type": "boolean"
                    },
                    "collectOsAndBrowser": {
                        "type": "boolean",
                        "default": false
                    },
                    "collectMethod": {
                        "type": "boolean",
                        "default": false
                    },
                    "collectResponseCode": {
                        "type": "boolean",
                        "default": true
                    },
                    "collectIp": {
                        "type": "boolean"
                    }
                },
                "type": "object",
                "additionalproperties": false
            },
            "HTTP_Profile": {
                "properties": {
                    "class": {},
                    "fallbackRedirect": {
                        "type": "string",
                        "default": "https://www.example.com/404"
                    },
                    "fallbackStatusCodes": {
                        "type": "array",
                        "default": [
                            404
                        ]
                    }
                },
                "type": "object",
                "additionalproperties": false
            },
            "Pool": {
                "properties": {
                    "class": {},
                    "members": {
                        "type": "array",
                        "items": {
                            "type": "object",
                            "properties": {
                                "servicePort": {
                                    "type": "number",
                                    "default": 80
                                },
                                "monitors": {
                                    "type": "array",
                                    "default": [
                                        "http"
                                    ],
                                    "const": [
                                        "http"
                                    ]
                                },
                                "adminState": {
                                    "type": "string",
                                    "default": "enable"
                                },
                                "shareNodes": {
                                    "type": "boolean",
                                    "default": true,
                                    "const": true
                                },
                                "serverAddresses": {
                                    "type": "array"
                                }
                            }
                        }
                    },
                    "monitors": {
                        "type": "array",
                        "default": [
                            "http"
                        ],
                        "const": [
                            "http"
                        ]
                    }
                },
                "type": "object",
                "additionalproperties": false
            },
            "Service_HTTP": {
                "properties": {
                    "class": {},
                    "virtualPort": {
                        "type": "number",
                        "default": 80
                    },
                    "profileAnalytics": {
                        "type": "object",
                        "properties": {
                            "use": {
                                "type": "string",
                                "default": "Analytics_Profile"
                            }
                        }
                    },
                    "profileHTTP": {
                        "type": "object",
                        "properties": {
                            "use": {
                                "type": "string",
                                "default": "HTTP_Profile"
                            }
                        }
                    },
                    "virtualAddresses": {
                        "type": "array"
                    },
                    "pool": {
                        "type": "string",
                        "default": "Pool"
                    },
                    "enable": {
                        "type": "boolean",
                        "default": true
                    }
                },
                "type": "object",
                "additionalproperties": false
            }
        }
    }
}

  3. Looking further into this request Lines 3 names the application template. Line 4 marks the application template as published. Lines 11-257 defines the schema for the application template.

  4. Click the blue Send button. Ensure that you receive a 200 OK response.

  5. To view the template we just uploaded, navigate to Chrome, BIG-IQ bookmark 10.1.1.7 (username = admin, password = admin).

  6. On BIG-IQ, navigate to Applications -> Application Templates.

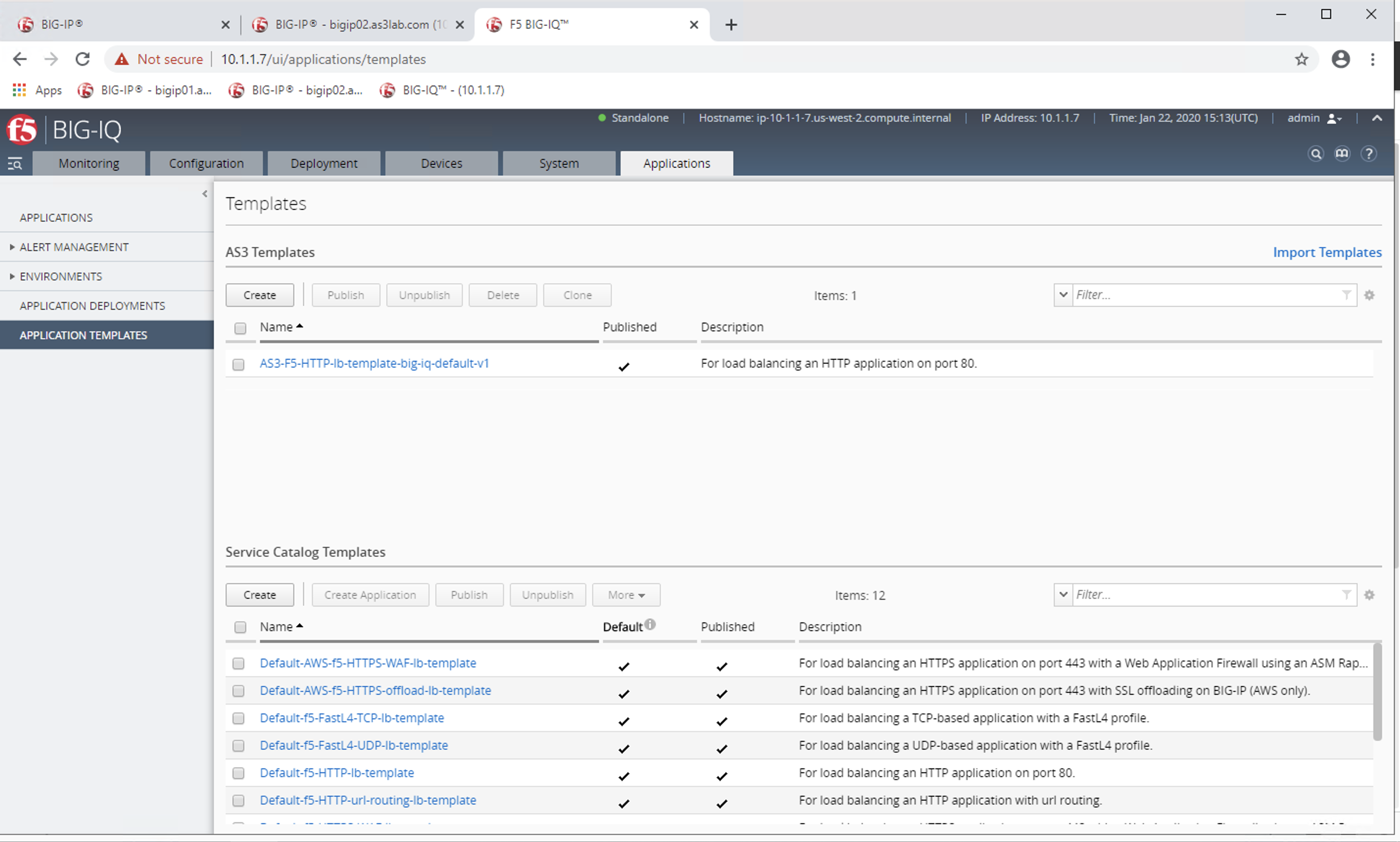

    ../../_images/bigiq_2.jpg

  7. In Postman, open the Create App2 with Template request.

  8. Click on the Body section of the POST Request. The body will look like the following

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
    {
    "class": "AS3",
    "declaration": {
        "class": "ADC",
        "target": {
            "hostname": "bigip01.as3lab.com"
        },
        "schemaVersion": "3.7.0",
        "DemoService": {
            "class": "Tenant",
            "App2": {
                "class": "Application",
                "schemaOverlay": "AS3-F5-HTTP-lb-template-big-iq-default-v1",
                "template": "http",
                "serviceMain": {
                    "class": "Service_HTTP",
                    "virtualAddresses": ["10.0.2.23"],
                    "pool": "web_pool"
                },
                "web_pool": {
                    "class": "Pool"
                }
            }
        }
    }
}

  9. Looking further into this request. Line 13 defines the schema that we are going to use AS3-F5-HTTP-lb-template-big-iq-default-v1.

  10. Click the blue Send button. Ensure that you receive a 200 OK response.

  11. This application is now in the Unknown Applications section on the BIG-IQ Application dashboard, and it is in the Demo Service partition on the BIG-IP (10.1.1.4).

  12. Now we will change this application. Open the Change App2 request.

  13. Click on the Body section of the POST Request. Notice the changed IP address for the virtualAddress.

     1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
    {
    "class": "AS3",
    "action": "patch",
    "patchBody": [
        {
            "class": "ADC",
            "target": {
                "address": "10.1.1.4"
            },
            "op": "replace",
            "path": "/DemoService/App2",
            "value": {
                "class": "Application",
                "schemaOverlay": "AS3-F5-HTTP-lb-template-big-iq-default-v1",
                "template": "http",
                "serviceMain": {
                    "class": "Service_HTTP",
                    "virtualAddresses": ["10.0.2.24"],
                    "pool": "web_pool"
                },
                "web_pool": {
                    "class": "Pool"
                }
            }
        }
    ]
}

  14. Click the blue Send button. Ensure that you receive a 200 OK response.

  15. This application is now changed on BIG-IQ and BIG-IP.

  16. Now we will delete the app. Open the Delete App from Template request.

  17. Click the blue Send button. Ensure that you receive a 200 OK response.

  18. This application is now deleted from BIG-IQ and BIG-IP (10.1.1.4).
